After installing certificate in Plesk message appears: SSL CA is not correct. Intermediate certificate missing

Symptoms

• Online SSL checker (such as thawte CryptoReport, Qualsys SSL Labs, SSL Shopper) shows an error like:

  CONFIG_TEXT: Intermediate certificate missing

  ---

  CONFIG_TEXT: The certificate is not trusted in all web browsers. You may need to install an Intermediate/chain certificate to link it to a trusted root certificate.

  ---

  CONFIG_TEXT: This server's certificate chain is incomplete

• A browser can show:

  CONFIG_TEXT: Your connection is not private NET::ERR_CERT_AUTHORITY_INVALID

• Browser is rejecting certificates based on the intermediate one

• When trying to log in via an e-mail client, one of the following errors is shown:

  CONFIG_TEXT: The server you are connected to is using a security certificate that cannot be verified. The target principal name is incorrect.

  ---

  CONFIG_TEXT: Could not verify this certificate because the issuer is unknown

Cause

The certificate consists of 3 parts:

• *.key file private key;
• *.crt - certificate itself;
• *-ca.crt - certificate of Certificate Authority.

The error means Certificate Authority (ca.crt) part of a certificate  is missing.

Resolution

*.key / *.crt / *-ca.crt parts of the certificate should be provided by your Certificate Authority.

Contact the certificate issuer and ask to provide CA part of the certificate:

• Comodo
• IdenTrust
• Symantec
• GoDaddy
• GlobalSign
• DigiCert

Rename the existing certificate under Plesk > Domains > example.com > SSL/TLS Certificates > certificate _name > Rename.

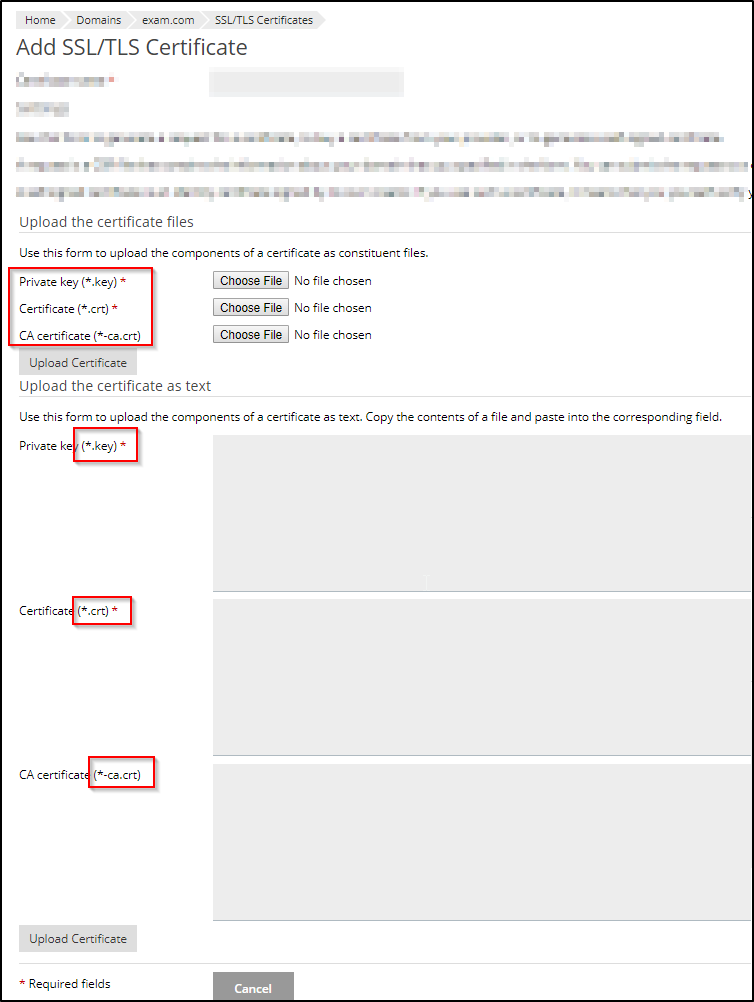

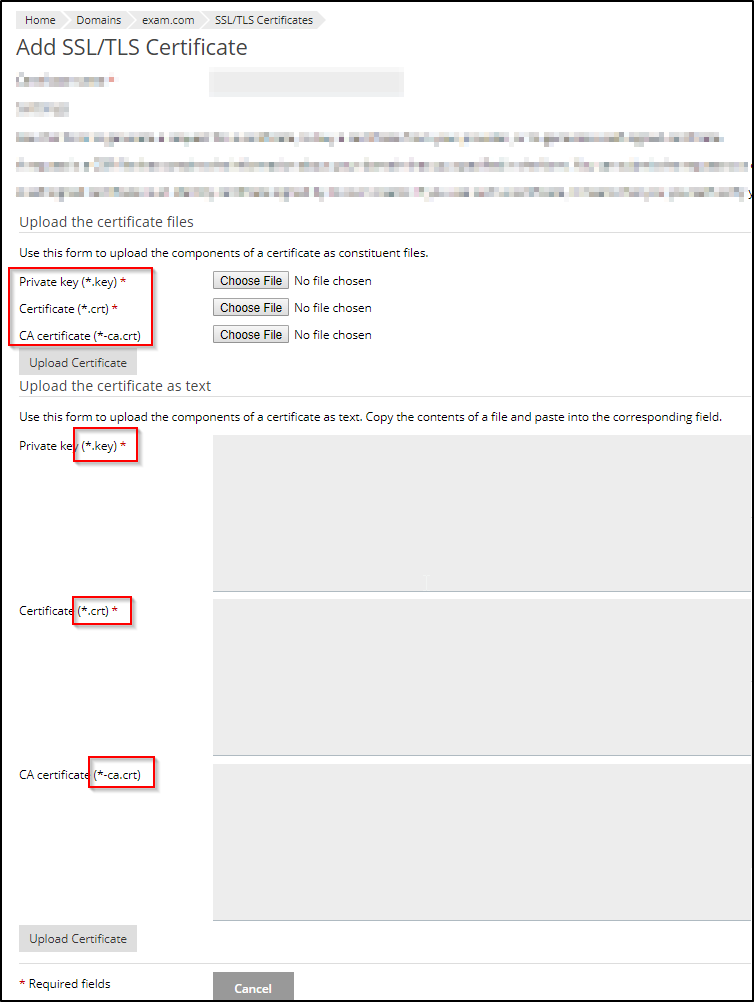

Then, install the certificate again. All three parts should be uploaded/filled for the certificate:

Additional information

How to install SSL certificate for a domain in Plesk

How to generate certificate signing request (CSR) for a domain in Plesk
